SOLID / COPPER BONDED EARTH ROD AND FITTINGS - (250 Micron Copper bonded)
Seacon earth rods are made from high tensile low carbon steel complying with BS 4360 grade 43A. Each rod is made by molecularly bonding 99.9% pure electrolytic copper. To prevent oxidation of copper bonding each rod is treated with Benzol-triozole derivatives. Threads on the rods are formed by roll threading process giving extra strength to the threads and eliminating risk of chipping of threads while driving the rod in the ground.
|
|
|
|
"Seacon" Rod to Cable Clamp Manufactured from Gun Metal or Naval Brass or Stainless Steel bolt to suit various dia. rod and cables.
Rod DIA. mm |
Total Length |
Thread Dia. |
|
9.5 12.5 12.5 12.5 12.5 12.5 14.2 14.2 14.2 14.2 14.2 17.2 17.2 17.2 17.2 17.2 25 25 |
1200 1200 1500 1800 2400 3000 1200 1500 1800 2400 3000 1200 1500 1800 2400 3000 2400 3000 |
Unthreaded 9/16" 9/16" 9/16" 9/16" 9/16" 5/8" 5/8" 5/8" 5/8" 5/8" 3/4" 3/4" 3/4" 3/4" 3/4" Unthreaded Unthreaded |
|
|
|
|
"Seacon" Driving Stud Manufactured from high tensile steel. It can be reused.
|
|
|
|
"Seacon" Dowel Manufactured from Brass and also available in Phosphorbronze.
|
|
|
|
"Seacon" Driving Spike Manufactured from Steel to BS 970, Grade 070M20
|
|
|
|
CAT NO. |
NORMAL ROD DIA |
CONDUCTOR RANGE mm2 |
|
SBL 38 SBL 12 SBL 58 SBL 34 SBL 20 |
9.5 12.5 16 20 25 |
6-35 16-60 16-70 16-95 70-120 |
|
|
|
|
LIGHTNING ARRESTORS & ACCESSORIES |
|

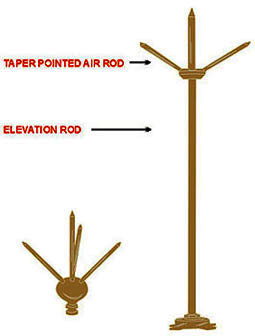

TAPER POINTED AIR ROD: Taper pointed air rods are made up of high conductivity E grade Copper & Aluminium.Rods can be installed with or without Multiple points. MULTIPLE POINTS: Multiple Points are made from Copper Alloy and the Tape Spike from E grade copper.
ELEVATION ROD:
Elevation Rods are manufactured from high conductivity copper to BS 2874 & Aluminium to BS 2987
CLAMPS: Earth Rod clamps are manufactured from Gun Metal/ High strength copper alloy.
Suitable to use with a combination of rod size and tape or conductors.
|
|
|
|
|
|
|
|
